What does dot-matrix mean and how dot matrix hologram is made?

Dot-Matrix Hologram means that hologram image made of lots of small hologram dot grating. Usually, the quantity of the dots will be more than hundred thousands dots or millions dots. Dot-matrix Hologram sticker can have lots moving, flipping, zooming effect,etc. We can recombine good dot-matrix effect together with 2D/3D hologram which has good viewing depth with diffrent layers and hidden text.

Dot matrix digital computerised master origination shooting system make a hologram design comprising many tiny dots which are too small to be seen by the naked eye. These dots tiny dot separate hologram together create a hologram image.

Dot-matrix Holographic Sticker Samples Page 1

Dot matrix Type Samples 1 2 3 4 5 6 7 8 9 10

Hologram dot matrix resolution in 317 dpi, 635 dpi, 1270 dpi

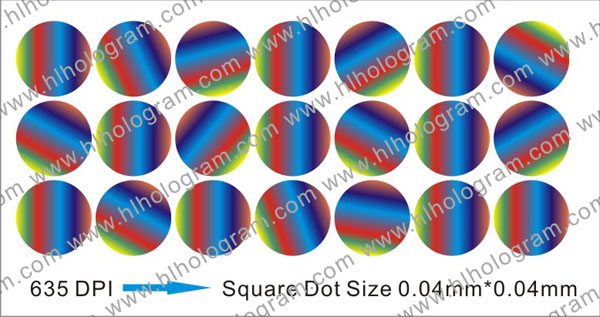

635 dpi resolution. The size of hologram dots are 0.04mm*0.04mm squre shape..

635 dpi resolution. The size of hologram dots are 0.04mm diameter, circle shape.

1270 dpi resolution. The size of hologram dots are 0.02mm*0.02mm. Square shape.

How Dot matrix hologram color made by diffrent interference angle and different hologram optics.

Dot-matrix hologram dots made by laser interference angles.

dot-matrix effect 1: Zoom in Zoom out effect: circle, square, rhombus, polygon, word, curve
dot-matrix effect 2: Movement of curtain effect: two direction, one direction, or XY_ direction
dot-matrix effect 3: Pearlescent effect: polygon movement of ray, random kinematic movement ray, combination of kinematic movement ray
dot-matrix effect 4: Revolving ray effect: whatever revolving shape of curve, revolving effect of line, etc
dot-matrix effect 5: Projective effect: whatever word, whatever font, recombination of image projection flex
dot-matrix effect 6: Switch effect: Different flips switches with different viewing angle
dot-matrix effect 7: Three-dimensional effect: word has fasle three-dimensional effect, imitational 2D/3D hologram
dot-matrix effect 8: Micron text effect: line of font can be 0.02mm, letter can be in size of 0.12mm (1270 DPI)
dot-matrix effect 9: Random matrix: dots blink in different viewing angle
